Ansys Maxwell Low Frequency EM Field Simulation

Ansys Maxwell is an EM field solver for electric machines, transformers, wireless charging, permanent magnet latches, actuators and other electric mechanical devices. It solves static, frequency-domain and time-varying magnetic and electric fields. Maxwell also offers specialized design interfaces for electric machines and power converters.

Overview

Low-Frequency Electromagnetic Simulation

With Maxwell, you can precisely characterize the nonlinear, transient motion of electromechanical components and their effects on the drive circuit and control system design. By leveraging Maxwell’s advanced electromagnetic field solvers and seamlessly linking them to the integrated circuit and systems simulation technology, you can understand the performance of electromechanical systems long before building a prototype in hardware.

Features

Product Specs

Maxwell offers trusted simulation of low-frequency electromagnetic fields in industrial components. It includes 3-D/2-D magnetic transient, AC electromagnetic, magnetostatic, electrostatic, DC conduction and electric transient solvers to accurately solve for field parameters including force, torque, capacitance, inductance, resistance and impedance.

Still have a question?

Reduced-Order Modeling

Co-sim Transient Performance

2D and 3D EM Solvers

Slice-Only Solving

Automatic Adaptive Meshing

Component to System

Capabilities

Increase machine efficiency and reduce time-to-market with Ansys Maxwell simulation

Customizable modeling capabilities, automatic adaptive meshing and advanced high-performance computing technology allow designers to solve complete high-performance electromechanical power systems. Automatically generate nonlinear equivalent circuits and frequency-dependent state-space models from field parameters that may be further used in system and circuit simulation to achieve the highest possible fidelity on SIL (software-in-the-loop) and HIL (hardware-in-the-loop) systems. Ansys simulation technology enables you to predict with confidence that your products will thrive in the real world.

Customers trust our electromagnetic analysis software to help ensure the integrity of their products and drive business success through innovation.

Capabilities

Key Features

Maxwell is an industry-leading electromagnetic field simulation software for the design and analysis of electric motors, actuators, sensors, transformers and other electromagnetic and electromechanical devices.

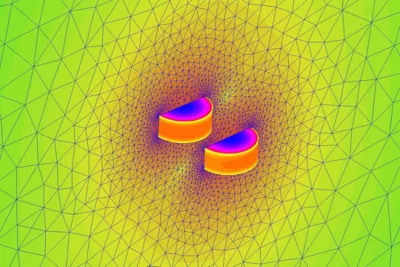

Automatic, Adaptive Meshing

A key benefit of Maxwell is its automatic adaptive meshing techniques, which require you to specify only the geometry, material properties and the desired output to obtain an accurate solution. Maxwell’s meshing process uses a highly robust volumetric meshing technique and includes a multithreading capability that reduces the amount of memory used and accelerates time to solution. This proven technology eliminates the complexity of building and refining a finite element mesh and makes advanced numerical analysis practical for all levels of your organization.

Multiphysics Coupling Workflow

Maxwell’s electromagnetic field solvers are linked through Ansys Workbench to easily set up and analyze complex coupled-physics behaviors such as deformed mesh feedback structures, stress and strain feedback on magnetic properties, EM fluids and acoustics.

Advanced Magnetic Modeling

Perform advanced simulation calculations such as core loss calculations, vector hysteresis, four-quadrant simulation for permanent magnets, magnetostriction and magnetoelastic analysis, Litz Wire Loss and manufacturing effects on loss computation.

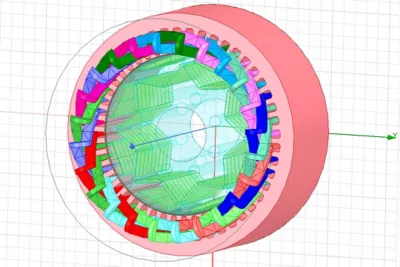

Specialized Design Interfaces

Electric Machines and power converters require significantly different design criteria and simulation, which is why Maxwell provides specialized interfaces for each.

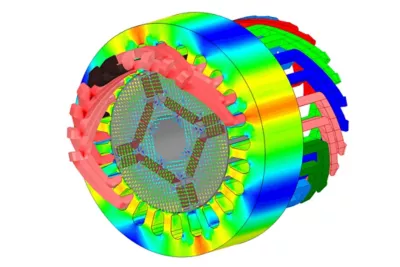

RMxprt

In addition to providing classical motor performance calculations, RMxprt automatically generates geometry, motion and mechanical setup, material properties, core loss, winding and source setup for detailed finite element analysis in Maxwell.

Simplorer

A multi-domain power electronics simulator for electrical, magnetic, mechanical, fluid, and thermal systems that seamlessly integrates three fundamental component libraries: circuits, block diagrams, and state machines. Simplorer provides an integrated analysis thanks to its connection with EM (Maxwell, PExprt, RMxprt, Q3D,HFFS and thermal tools (Ansys CFD, Ansys Icepak

Simplorer also includes the ability to characterize high fidelity power semiconductor models for thermal and EMI/EMC simulations. In addition, Simplorer’s model libraries include VHDL-AMS capability and existing controls systems and customer developed models.

PExprt

Power Electronics Expert (PExprt) is a magnetic design and optimization tool for ferrite transformers and inductors including, multi-winding transformers, coupled inductors, and flyback components. PExprt’s template-based interface for transformers and inductors can automatically create a design from voltage waveform or converter inputs. The auto-design process considers all combinations of core shapes, sizes, materials, gaps, wire types and gauges, and winding strategies to optimize the magnetic design.

It contains manufacturer libraries for common components. It also combines FEA-based solutions to include skin and proximity effects, and gap effects due to magnetic fringing. Additionally, it calculates winding losses, core Losses, R, L, C parameters and temperature rise, and couples to Simplorer using a frequency dependent netlist for the simulated component.

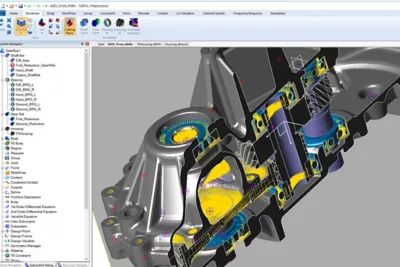

Maxwell to Motion

You can output transient electromagnetic forces from Ansys Maxwell into Ansys Motion, extending electromagnetic interaction to rigid body dynamics to enhance the overall noise-vibration solution.

New Time Domain Solver

A new Maxwell transient solver provides multiterminal conductor support on a single conduction path.
