Ansys Rocky
Particle Dynamics Simulation
Software

Ansys Rocky is the industry-leading discrete element method (DEM) software that quickly and accurately simulates particle flow behavior.

Overview

Quickly and Accurately
Simulate Particle Flows

Rocky is designed to solve engineering problems. Rocky is uniquely capable to models real particle shapes including any solids, 2D shells, and rigid and flexible fibers. The simulations are fast and accurate. With multi-graphics processing unit (GPU) solver technology, you can simulate the behavior of different shaped and sized particles in many industrial applications.

Features

Quick Features & Benefits

Accelerate your toughest particle simulations by using the most powerful DEM software in the market. Ansys Rocky contains industry leading features and capabilities to solve large, complex problems accurately and efficiently.

Still have a question?

Multi-GPU Processing

Non-spherical Particle Shapes

Accurate Particle Physics

Advanced Breakage Modeling

Automation and Customization

Multi Body Dynamics

CFD Coupling

FEA Coupling

Surface Wear

2D Shells and Fibers

3D Scan Import

HPC

Capabilities

Solve the Largest, Most Complex Particle Simulations With Ease

Ansys Rocky unlocks the potential of solving the most challenging DEM simulations. Large scale simulations, going up to millions of particles, can be solved using real particle shapes on multi GPU’s.

Capabilities

Key Feartures

Rocky is the premier tool for quickly and accurately simulating the behavior of bulk materials with complex particle shapes and size distributions.

Multi-GPU Processing

The multi-GPU solver in Rocky distributes and manages the combined memory of two or more GPU cards within a single motherboard, overcoming memory limitations and achieving a substantial performance increase by aggregating computing power. Rocky can speed up your particle simulations and help facilitate large-scale simulations involving tens of millions of particles.

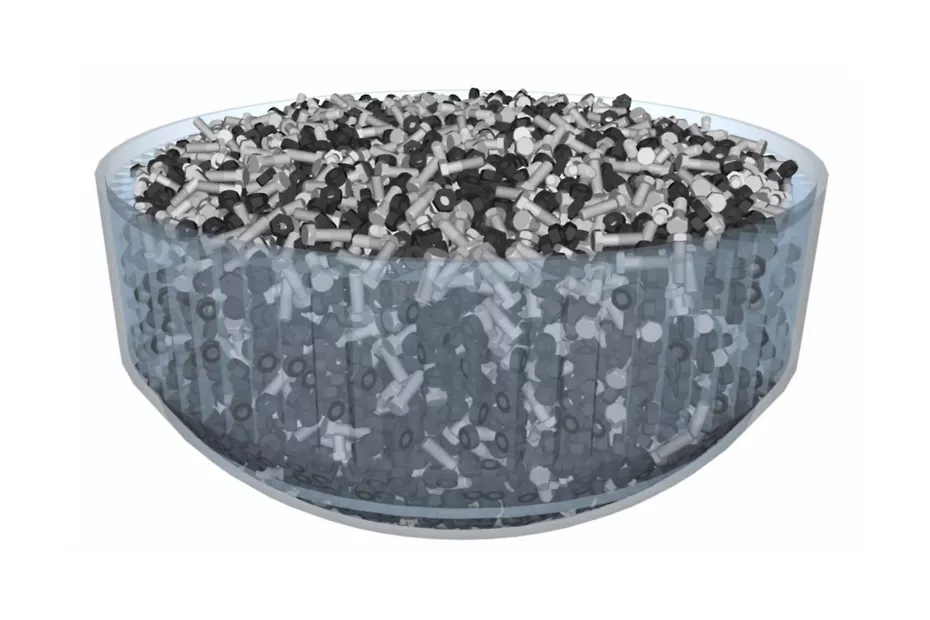

Realistic, Complex Particle Shapes

Rocky enables you to simulate a system with real particle shapes and sizes, specifying both spherical and truly non-spherical particle shapes, including shells and fibers. You can set up particle groups with particle size distributions and mix simulations of different particle shapes. Rocky comes with default shapes that you can use out-of-the-box or modify to match your particles. You can also define and import your own custom shapes. Fiber particles in Rocky can be of any length, flexible or rigid, and can be breakable.

CFD Coupling

Engineers need to assess to interaction of fluid and particles in many applications. Rocky coupled with Ansys Fluent creates a powerful workflow for modeling fluid systems. Specially for non-spherical particles or for systems with particle size distribution, engineers can create a multiphysics simulation by coupling CFD and DEM. CFD-DEM coupling can be used in two different ways:

FEA Coupling

Coupling DEM with FEA, engineers can simulate transient cases while incorporating geometry motion and time-varying loads on boundary elements.

During simulation, Rocky tracks the loads on each node of a geometry mesh. These loads are then exported as a pressure field for further analysis with Ansys Mechanical. The FEA software then discretizes the geometry and solves for the equilibrium conditions.

EM Coupling

Rocky enables solutions of particle flow affected by electromagnetic fields by coupling with Ansys Maxwell. Electric particles can experience three types of phenomena, with particles being influenced by electromagnetic fields, electrostatic fields or tribocharging. The magnetic fields calculated by EM solvers are imported as point clouds into Rocky. The resulting calculations show the particle flow, including particle attraction depending on the charge.

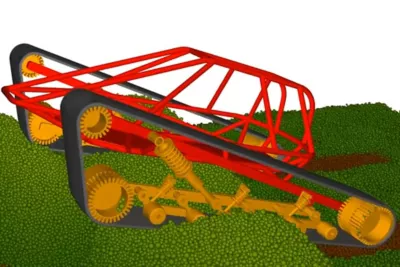

Multibody Dynamics

Rocky gives you the freedom to configure complex geometry movements by enabling as many translational, rotational, vibrational, swinging, crushing and free-body motions as you need. The fully integrated motion kernel offers support for combined geometry motions within the software.

Whether you want to prescribe exact movements or have your geometry components move freely in response to outside forces like particle contacts and gravity, Rocky has your complex motion needs covered. For more complex motions with that combine the effects of loads and mechanics, Rocky can be coupled to Ansys Motion.

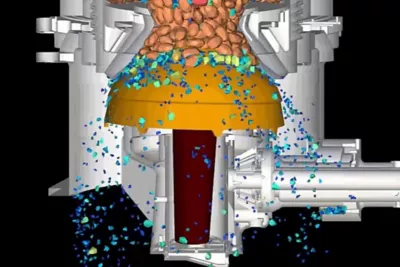

Breakage Modeling

Rocky’s unique, discrete breakage model is a high-fidelity model that considers the collision location at the particle’s surface along with its consequent internal stresses, capturing shape-dependent breakage and crack propagation.

Unlike most DEM codes that use a combination of spheres connected to each other to approximate a particle shape, Rocky uses tetrahedra, allowing for representation of any particle shape while preserving volume and mass. Thus, it can simulate breakage for particles of any shape and aspect ratio: fibers, shells and custom-shaped particles.

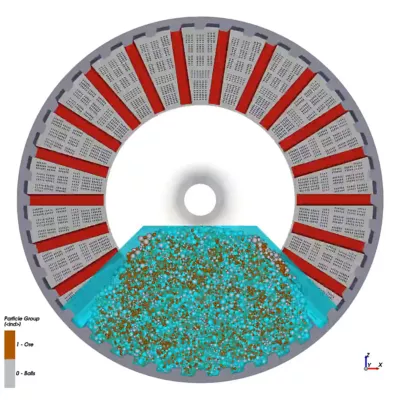

Smoothed Particle Hydrodynamic

The SPH (Smoothed-Particle Hydrodynamics) is a method to model fluids in fluid-particle simulations. This Lagrangian mesh-free method helps account for the fluid effect on particles in problems with high solid content and free surface flows.
